информация о продукте
Повторяемость может достигать <0,01 мм.
Имеет параллельный зажим, оптимальное преобразование силы,
прочный, высокое зажимное усилие и износостойкость.

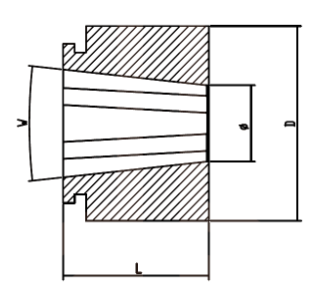

Размер товара
Параметры продукта
| Rubber-elastic collets T212-XXS | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-XXS | 12° | 3 | 0.2 | 8-13 | 30 | ±0.2 |
| Rubber-elastic collets T212-XS | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-XS | 12° | 3 | 3 | 13-19 | 30 | ±0.25 |
| Rubber-elastic collets T212-S | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-S | 12° | 3 | 6 | 16-21 | 31 | ±0.25 |
| Rubber-elastic collets T212-0 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-0 | 12° | 3 | 4 | 20-28 | 41 | ±0.25 |
| Rubber-elastic collets T212-1 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-1 | 12° | 3 | 6 | 26-38 | 46 | ±0.35 |
| Rubber-elastic collets T212-2 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-2 | 12° | 6 | 6 | 36-54 | 61.5 | ±0.35 |
| Rubber-elastic collets T212-3 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-3 | 12° | 6 | 8 | 50-80 | 67.5 | ±0.40 |
| Rubber-elastic collets T212-4 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-4 | 12° | 6 | 10 | 69-100 | 76 | ±0.50 |
| Rubber-elastic collets T212-5 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-5 | 12° | 6 | 12 | 100-130 | 85 | ±0.50 |
| Rubber-elastic collets T212-6 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-6 | 12° | 8 | 12 | 130-160 | 94.5 | ±0.50 |
| Rubber-elastic collets T212-7 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T212-7 | 12° | 8 | 12 | 160-200 | 100 | ±0.50 |
-
